Specifications:
-

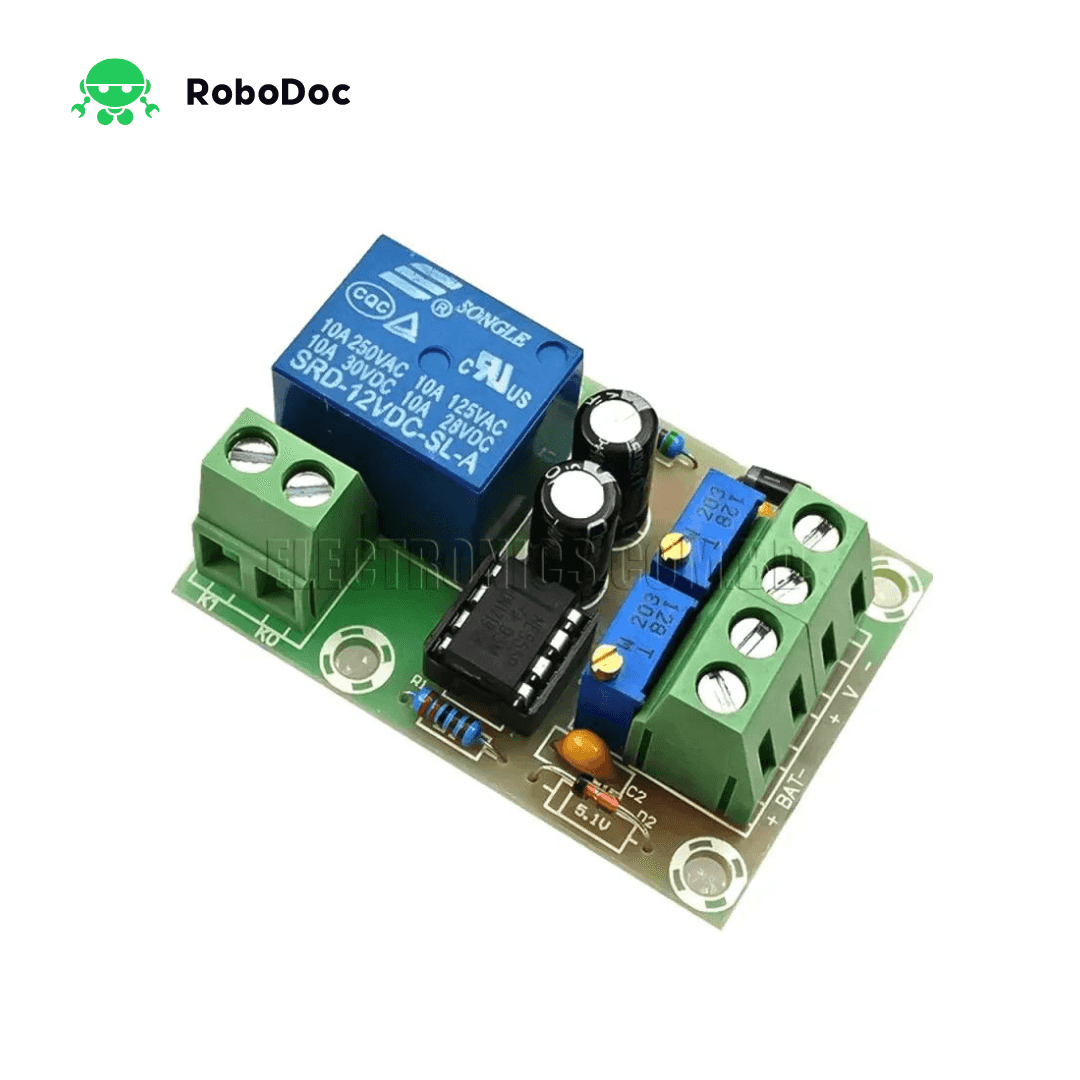

Name: 12V Charger Power Control Board
-
Model: XH-M601
-
Supply Voltage: 13.8V~14.8V
-
Relay Closing Voltage: 12.4V
-
Relay Opening Voltage: 14.8V
-
Voltage Error: ±0.1V
-
Voltage Detection Way: DC Voltmeter
-
Battery Charger Type: 12V Storage Battery
-
Potentiometer Adjustment: RP1 RP2 (pls be more carefully)
-
Board Size: 50mm x 32mm x 18mm (L*W*H)
Potentiometer Adjustment:
-
RP1:adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
-
RP2:adjust storage battery disconnects charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
Package:
1x XH-M601 Battery Charging Control Board
