Important reminder: the whole charging protection board has a protection function, if your battery protection board, before use, please remove the battery protection board, otherwise it may cause the trial is not normal.Module performance:
The input voltage: 4.35-6 v (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery discharge termination voltage: 3.2 V
Battery: over-current protection current 3 a
The board size: about 2.5 * 1.65 CM
Light state: no load the light not bright, red light for recharging, is full of green light.
- Home /
- Components /
- Batteries /
- TP4056 Type C USB Li...
![TP4056 Type C USB Lithium Battery Charger Module](/_next/image?url=https%3A%2F%2Fcdn.robodocbd.com%2Fproduction%2Fa9b7ba70783b617e9998dc4dd82eb3c5%2F968c069973b3fc2709c554ae9663f098.png&w=3840&q=40)
![TP4056 Type C USB Lithium Battery Charger Module](/_next/image?url=https%3A%2F%2Fcdn.robodocbd.com%2Fproduction%2Fa9b7ba70783b617e9998dc4dd82eb3c5%2F968c069973b3fc2709c554ae9663f098.png&w=3840&q=40)
Product ID: bat_10036

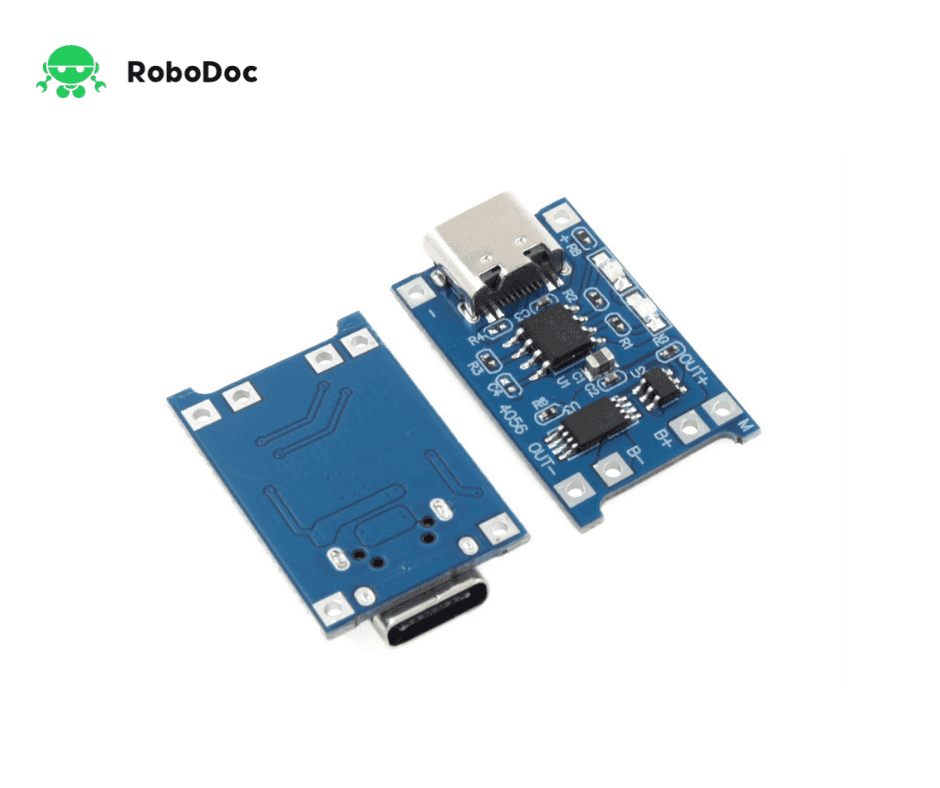

TP4056 Type C USB Lithium Battery Charger Module
৳49.93
TYPE C USB 5V 1A 18650 TP4056 Lithium Battery Charger Module
Quantity
1
Availability: 14
About this Item
Important reminder: the whole charging protection board has a protection function, if your battery protection board, before use, please remove the battery protection board, otherwise it may cause the trial is not normal.Module performance:
The input voltage: 4.35-6 v (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery discharge termination voltage: 3.2 V
Battery: over-current protection current 3 a
The board size: about 2.5 * 1.65 CM
Light state: no load the light not bright, red light for recharging, is full of green light.
