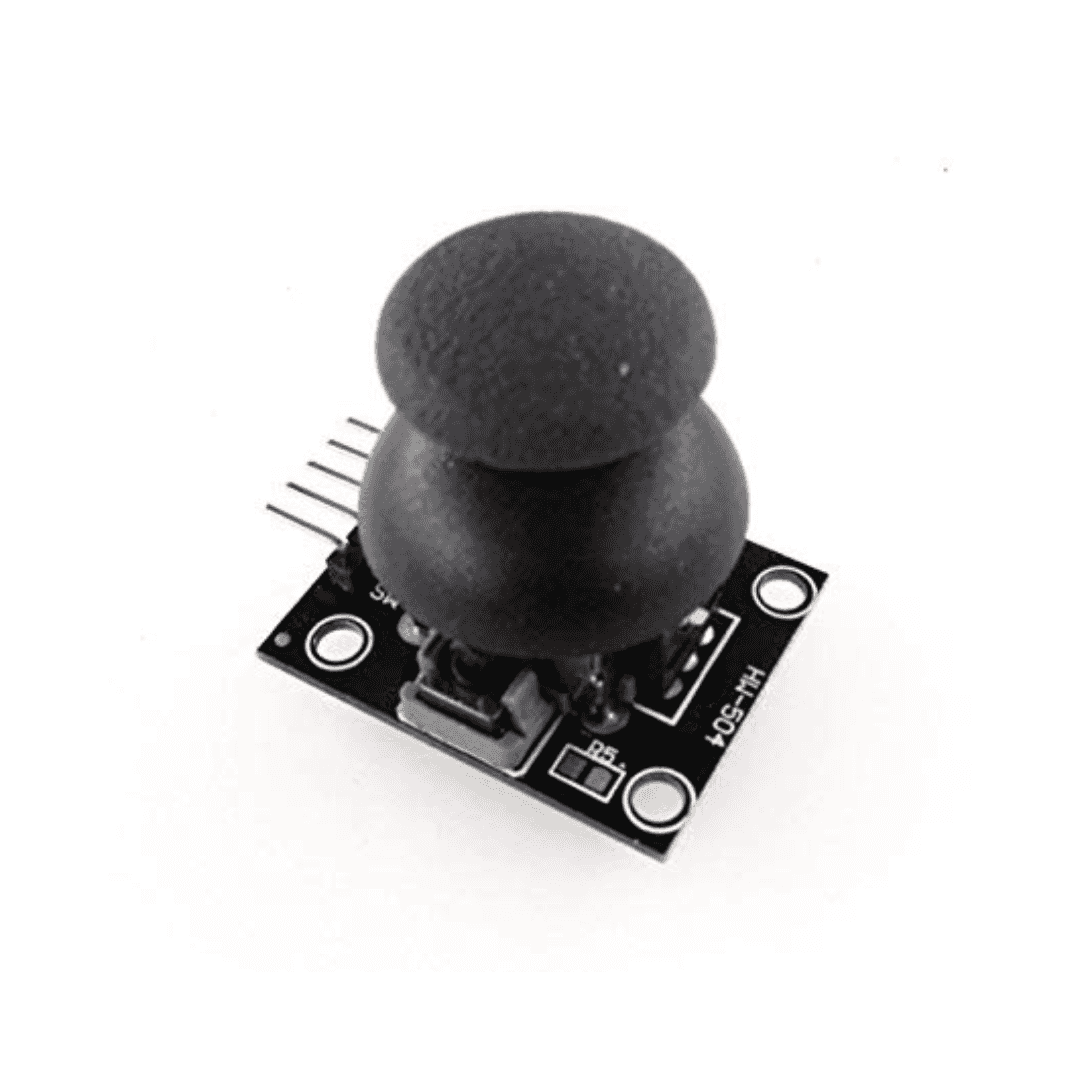

HW-504 JoyStick Breakout Module Shield for PS2 Joystick Game Controller Game Rocker Lever Sensor Module For Arduino
Specifications:
Model: HW-504
Material: electronic components
Color: black
Size: 16.5*16.5*2mm
Model: HW-504
Material: electronic components
Color: black
Size: 16.5*16.5*2mm
Features:
Game joystick module for Arduino PS2, electronic building blocks standard connector with 2.54mm pin.
DO port for digital output, AO port for analog output.
Bi-directional 10 k resistor, the resistance changes with the rocker in a different direction.
Module uses 5V power supply, the original state of X, Y read voltage of 2.5 V. When pressing at the arrow direction, voltage increases, maximum is 5 v, at opposite direction of the arrow, the voltage value decreases, minimum is 0 v.
DO port for digital output, AO port for analog output.
Game joystick module for Arduino PS2, electronic building blocks standard connector with 2.54mm pin.
DO port for digital output, AO port for analog output.
Bi-directional 10 k resistor, the resistance changes with the rocker in a different direction.
Module uses 5V power supply, the original state of X, Y read voltage of 2.5 V. When pressing at the arrow direction, voltage increases, maximum is 5 v, at opposite direction of the arrow, the voltage value decreases, minimum is 0 v.
DO port for digital output, AO port for analog output.
