Description:

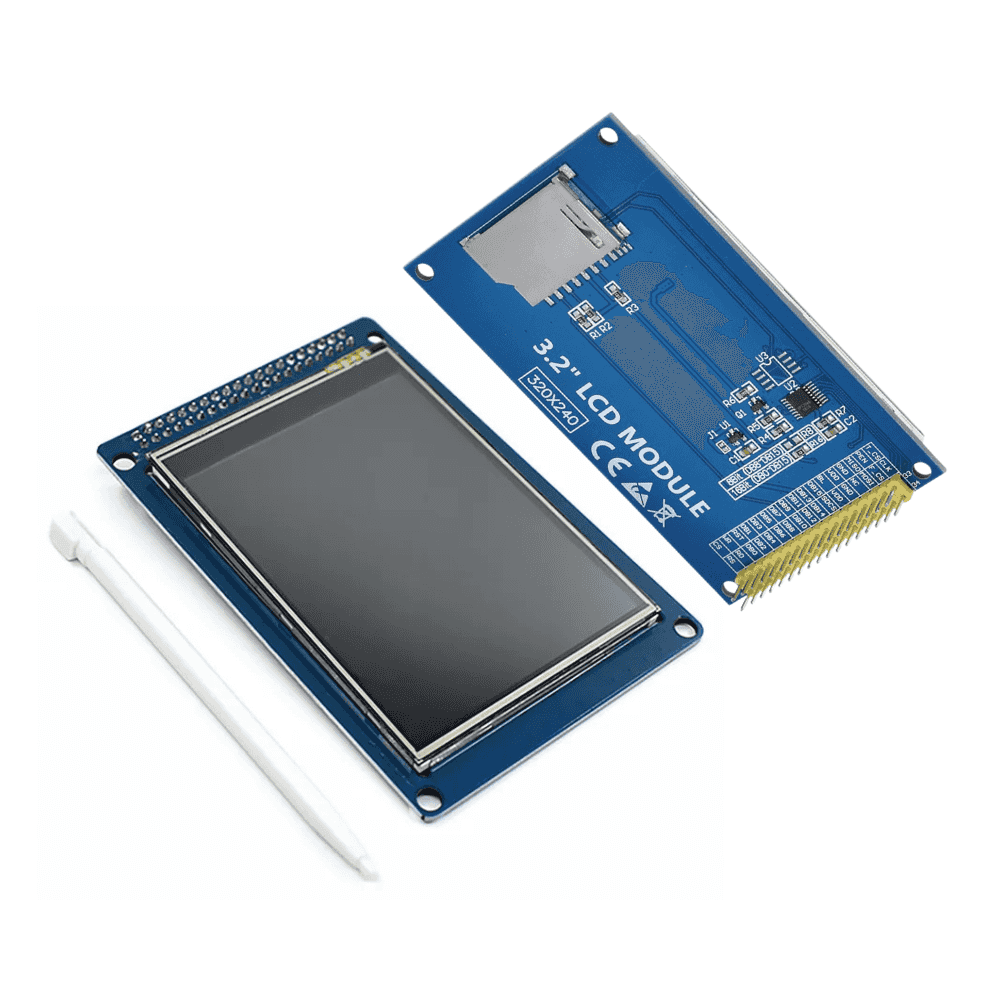

This 3.2 inch TFT LCD screen module features an Ultra HD resolution of 480 x 320 pixels, offering clear and vibrant display output. The screen is equipped with 6 white LED backlights for better visibility. It operates on a wide power range of 5V/3.3V and is compatible with the Arduino 2560 R3 board, making it an excellent choice for Arduino-based projects. The screen uses an ILI9481 driver IC and supports a 16-channel parallel bus interface.
Specifications:
-
Size: 89.92(W) x 54.25(L) mm
-
Display Size: 67.68(W) x 45.12(L) mm
-
Screen Size: 3.2 inches
-
Backlight Type: Highlighting White 6 LEDs
-
Screen Resolution: 480 x 320 pixels
-
Power Consumption: 80~110 mA
-
Screen Type: TFT (IPS Whole Perspective)
-
Power: 5V/3.3V
-
Touch Function: None
-
Driver IC: ILI9481
-
Data Bus: 16 Channels Parallel Bus
-
Module Interface: 36Pin, Compatible with Arduino
