Specification:
-

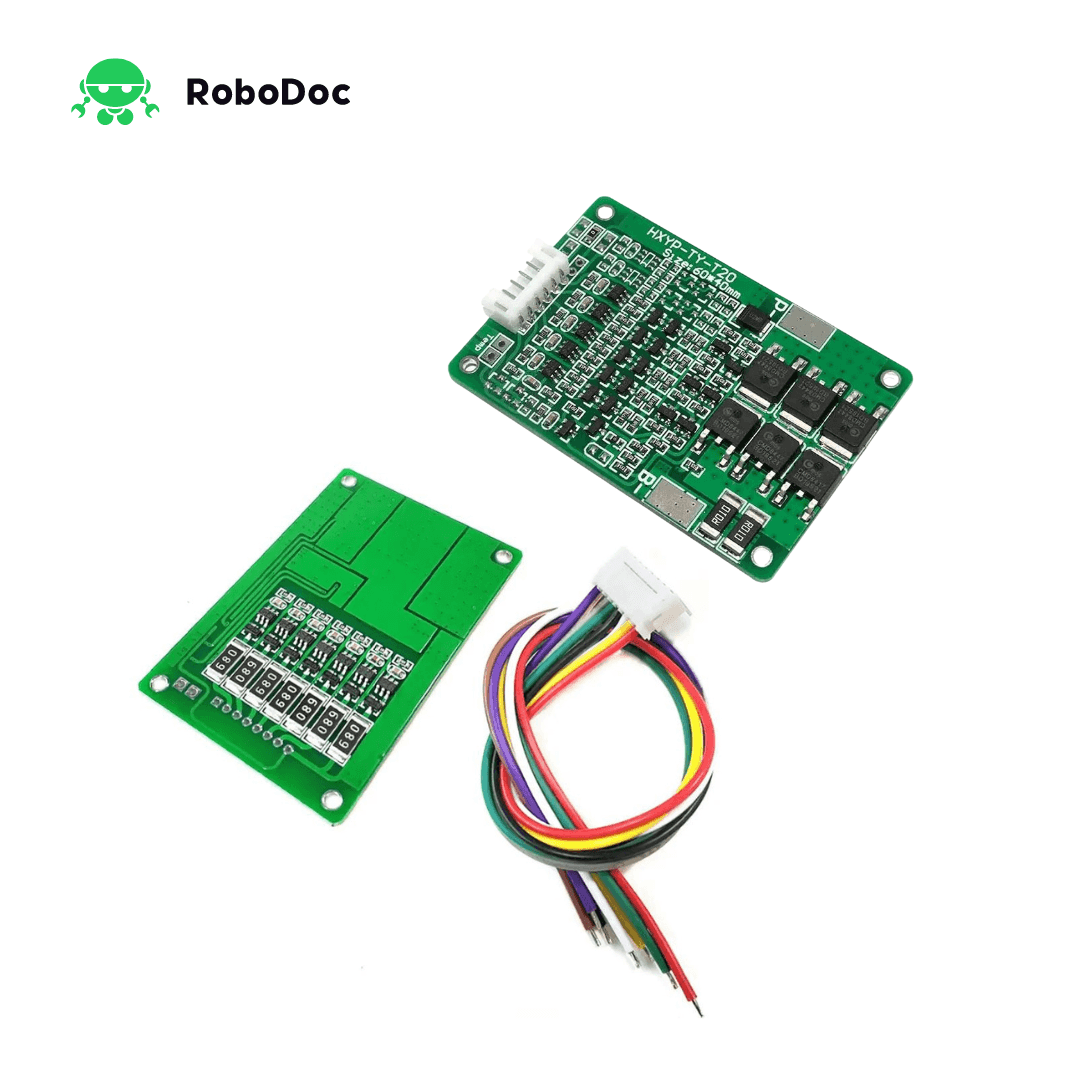

Model: HX-7S-TY-T20
-
7 Series (7 batteries in series) 2
-
5.2V (rated voltage of 3.6V polymer battery)
-
25.9V (rated voltage of 18650 or 3.7V lithium battery)
-
29.4V (voltage after the lithium battery is fully charged)
-
Upper limit working current: 15A
-
Upper limit instantaneous current: 20A
-
Overcharge voltage range: 4.25 +/-0.05V
-
Over-discharge voltage range: 2.5 +/- 0.05V
-
Charging voltage: 29.4V
-
Quiescent current: less than 30uA
-
Size: 6x4x0.6cm/1.3x1.2x0.1in(LxWxT)
-
Weight: 30 g
Note:
-
CAN NOT be used for lithium iron phosphate battery, xenon lamp, and drill battery pack, electric fish battery pack, electric bicycle battery pack, baby car battery, 550 or more power type motor,1W fish eye LED light.
-
Strictly to install as per the wiring diagram OV(B-), 3.7V(B1), 7.4V(B2),11.1V(B +), do not intentionally short circuit! Connect the wire and then charge it.
