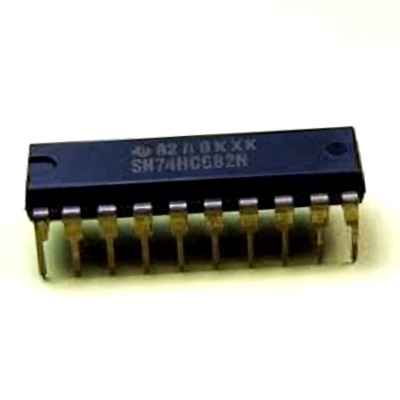

The SN74LS682N is a 8-bit Identity/Magnitude Comparator performs comparison of two eight-bit binary or BCD words. It provides P = Q\ outputs and has totem-pole outputs. The LS682 features 20kR pull-up termination resistors on the Q inputs for analog or switch data.
- Compares two 8-bit words
- Totem-pole outputs
- Hysteresis at P and Q inputs
