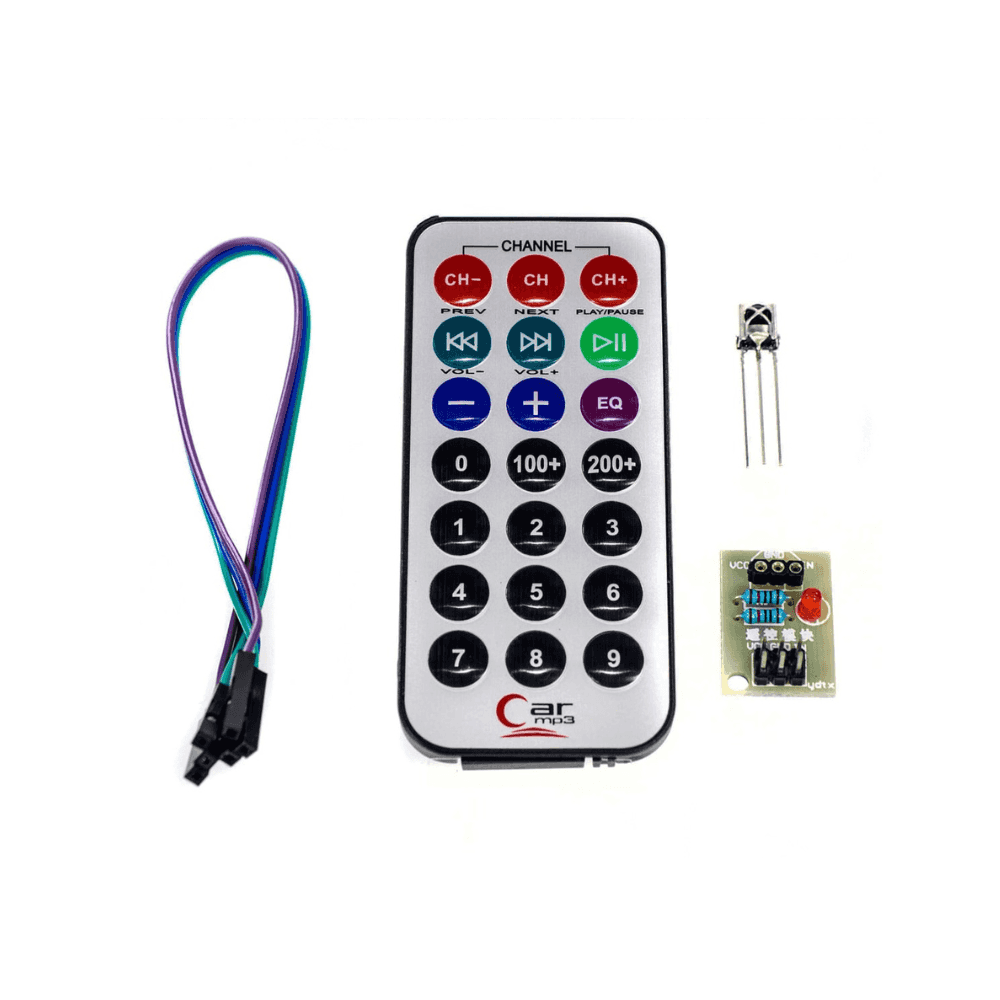

The Infrared Remote Control Module and Receiver Kit provides seamless wireless control with a 21-button remote and high-sensitivity VS1838B receiver, offering reliable 38kHz operation for home automation, robotics, and DIY projects.
- Includes a 21-button remote control for versatile wireless communication.
- High-sensitivity VS1838B receiver ensures accurate signal detection up to 18 meters.
- Compatible with Arduino, Raspberry Pi, and other microcontroller platforms.
- Compact and lightweight design simplifies integration into electronic projects.
- Ideal for controlling LEDs, motors, and custom DIY systems with real-time commands.
Specifications:
- Operating Voltage: 5V
- Static Current: 3~5µA
- Dynamic Current: 3~5mA
- Infrared Frequency: 38kHz
- Reception Angle: ±45 degrees
- Reception Distance: Up to 18m
- Transmission Distance: Up to 8m
- Remote Control Buttons: 21
- Receiver Module Dimensions: 30mm x 14mm x 7mm
- Remote Control Dimensions: 86mm x 40mm x 6mm
