1. Modules nature: Non-isolated buck
2. Rectification: Non-synchronous rectification
3. Input voltage: DC 7V - 24V
4. Output voltage: DC 5V
5. Output current: 4A(short time)
6. Conversion efficiency: 96% (MAX)
7. Switching frequency: 340KHz
8. Output ripple: 30mV(max)
9. Load regulation: +/- 0.5%
10. Voltage regulation: +/- 2.5%

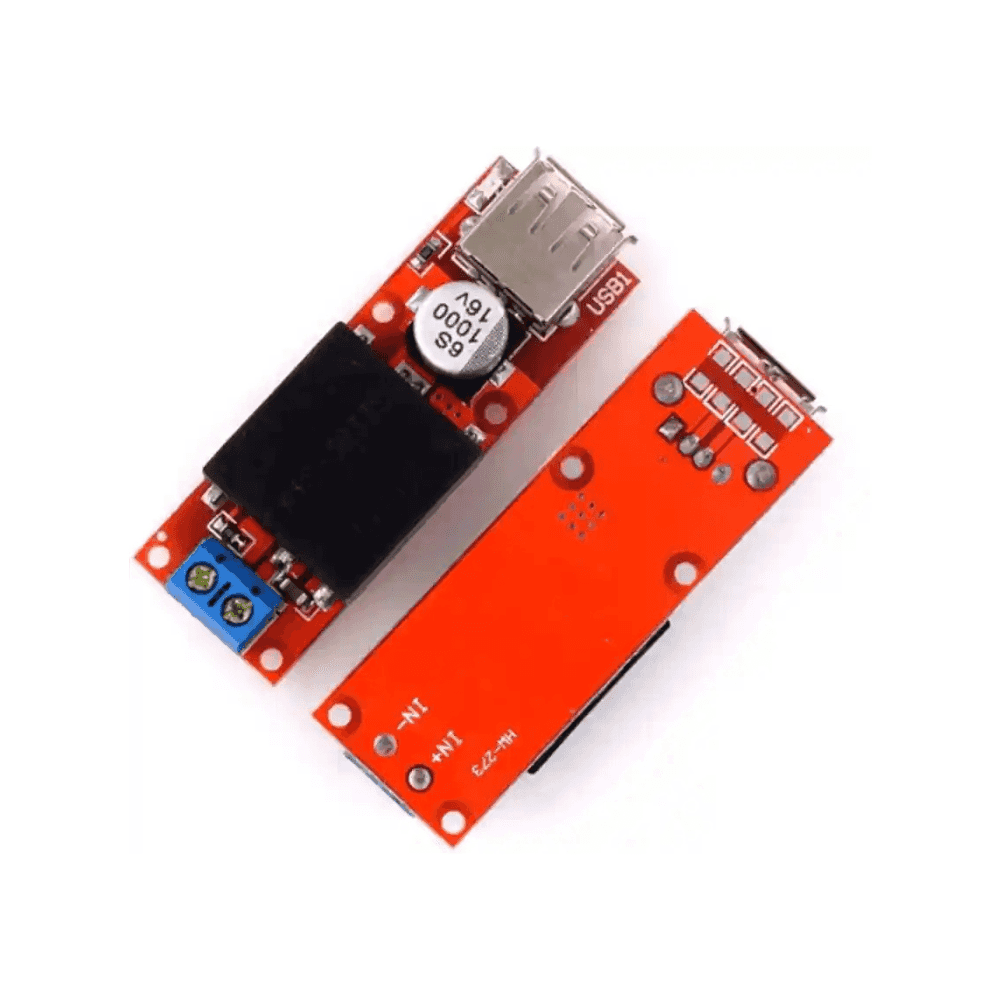

HW-273 Module DC 5v USB Output Converter
CategoryModules
৳299
Dc 5v Usb Output Converter 7v-24v To 5v 3a Buck Dc-dc Step-down Power Module Hw273
Quantity
1
Availability: 10
About this Item
1. Modules nature: Non-isolated buck
2. Rectification: Non-synchronous rectification
3. Input voltage: DC 7V - 24V
4. Output voltage: DC 5V
5. Output current: 4A(short time)
6. Conversion efficiency: 96% (MAX)
7. Switching frequency: 340KHz
8. Output ripple: 30mV(max)
9. Load regulation: +/- 0.5%
10. Voltage regulation: +/- 2.5%
