USB boost/buck power supply module, powered by USB, adjusts potentiometer to get the required voltage.
Features:
1. One button to turn off the output
2. Supply ON/OFF display screen
3. Support low power mode
4. Support sleep mode
5. Support both standard USB and Micro USB and pads input voltage
6. Potentiometer with rotating handle
Parameters:
1. Input voltage: DC 3.5-12V
2. Output voltage: DC 1.2-24V
3. Output power:
Input 1.2-2V, output power within 2W
Input 2V-20V, output power within 3W
Input 20V-24V, output power with in 2.5W
4. Display: 3Bit digital tube display
5. Size: 80*20*14mm.
Using Steps:
1. Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-’
2. Turn ON the display screen
3. Adjust the potentiometer to get the required voltage
4. Connect load
Application:
1. Ordinary power supply
2. Battery charger
3. LED drive power
4. Instrument voltage display
6. Circuit test
7. Power conversion
Package:
1pcs USB boost/buck power supply module
- Home /
- Components /
- Batteries /
- DC-DC 5V to 3.5V / 1...

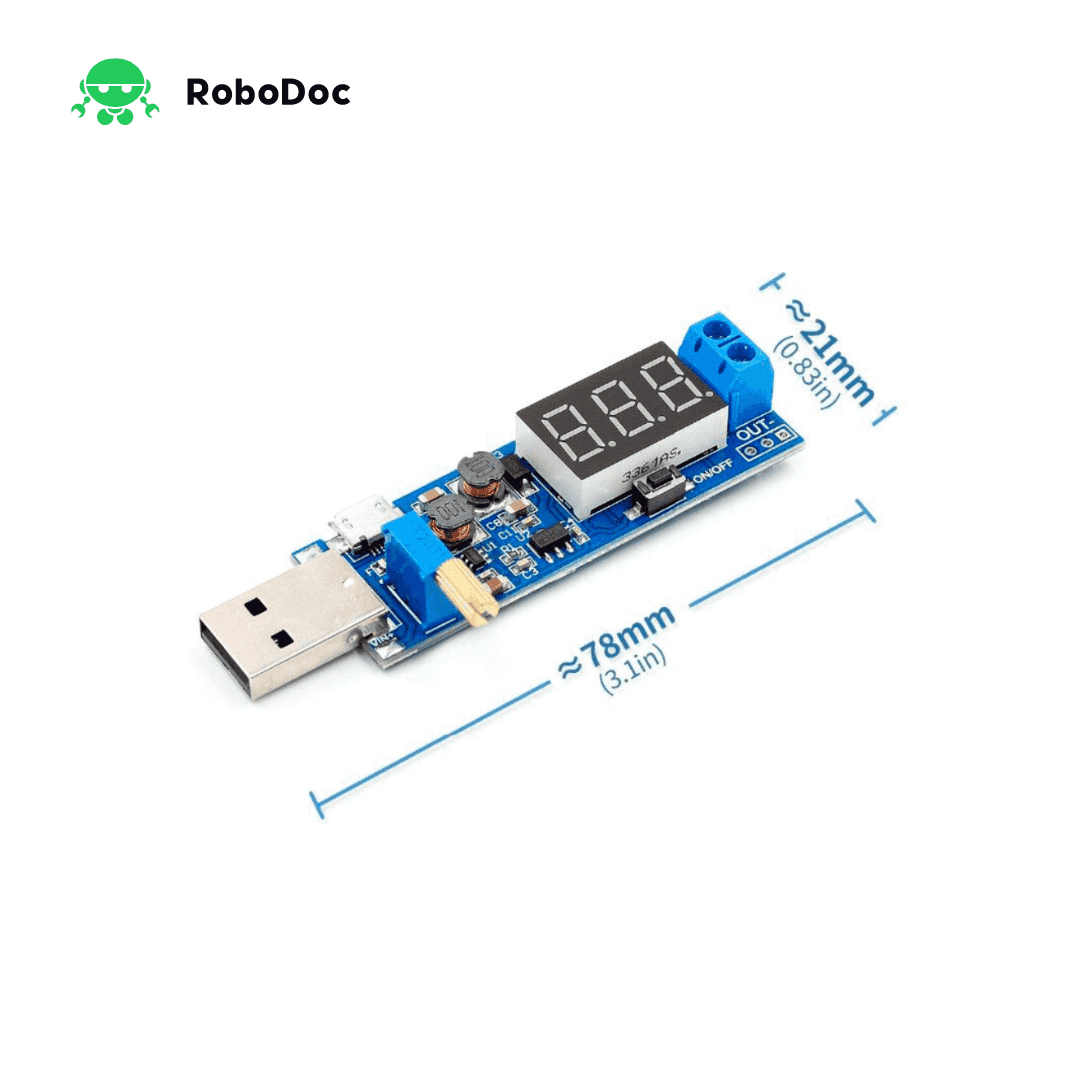

DC-DC 5V to 3.5V / 12V USB Step UP/Down Power Supply Module Adjustable Boost Buck Converter Out DC 1.2V-24V
