Features :
Stepper motor with a standard interface, when used directly pluggable.
A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
Compact size stepper motor perfect for small robotics applications.
General Specification:
-
Model: 28BYJ-48
-
Rated Voltage(V): 5
-
Rated Current (mA): 500 mA
-
Step Angle: 5.625°/64
-
Reduction ratio 64:1
-
Resistance (Ω): 50 Ω
-
In-Traction Frequency(Hz): >600 Hz
-
Out-Traction Frequency(Hz): >1000 Hz
-
In-traction Torque(mN-m): 34.3
-
Self-positioning Torque(mN-m): 34.3
-
Friction Torque(gf-cm): 600-1200
-
Pull in Torque(gf-cm): 300
-
Insulation Grade: A
-
Shaft Type Double: D-Type
-
Motor Weight(gm): 34
-
Length (mm): 34
-
Width (mm): 18
-
Height (mm): 10
-
Weight (gm): 34
Package Included :

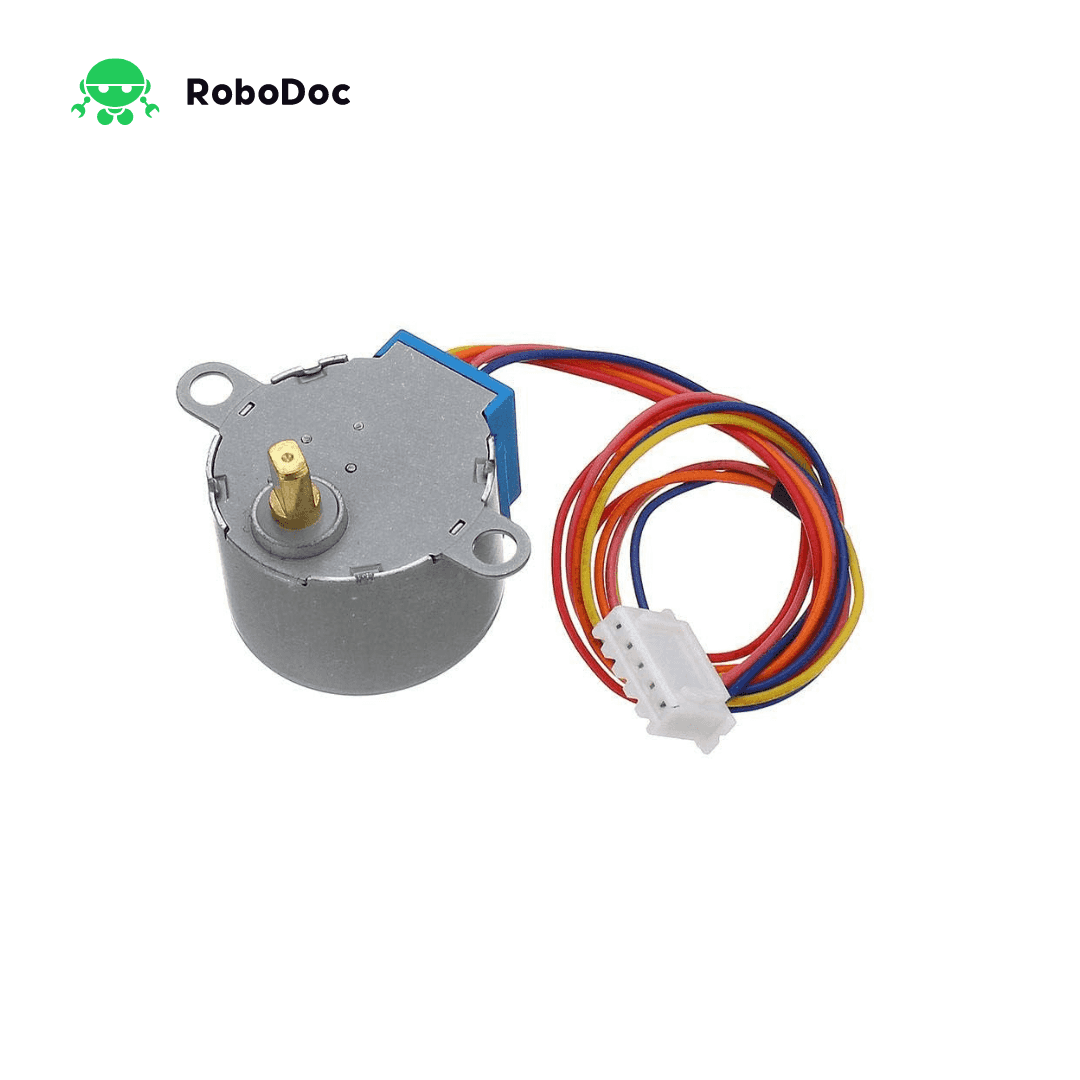

1 x 5V Stepper Motor 28BYJ-48
