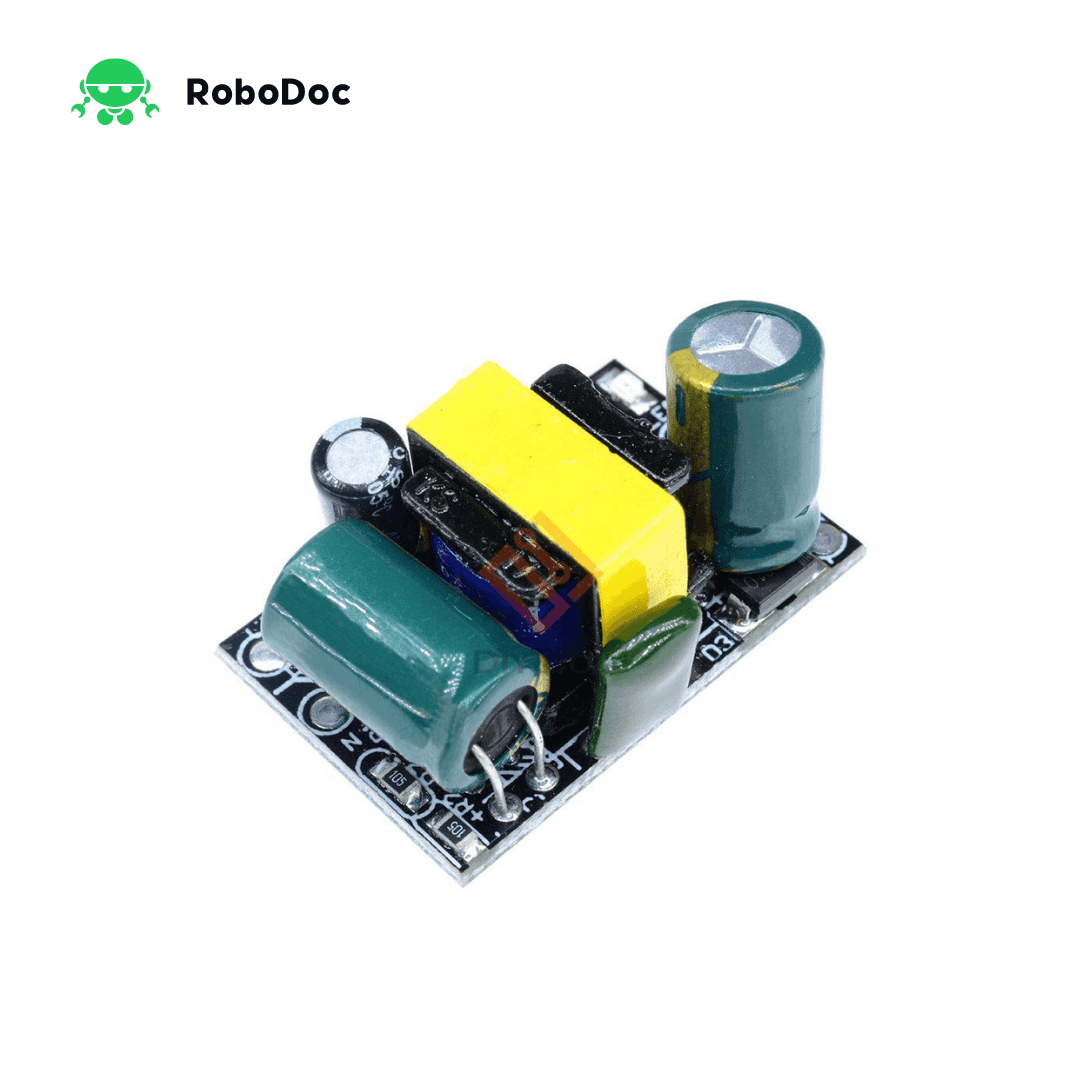

AC 220V to 5V DC step down Transformer power supply module
-
Input Voltage: 220VAC
-
Output Voltage: 5 VDC.
-
Output Power: 3.5W.
-
Output overload and short circuit protection.
Introduction:
A step-down converter sometimes referred to as a buck converter, reduces voltage from high to low, typically converting AC current to DC current. No matter how the connected devices or the electrical load fluctuate, a voltage regulator keeps the output voltage constant for the circuit.
Specifications;
-
Input voltage: AC 85 ~ 265 v 50/60 Hz or DC 100~ 370 v
-
Input current : 0.0273A(AC110V)
-
Input inrush current: 20A
-
Output voltage : DC 5V (+ / -0.2v)
-
Output current 700 ma
-
Power 3.5 W
-
Size: 3 x 2 x 1.8 cm
-
Weight: 0.04 kg
-
operating temperature -20 ~ 60?
Features:
-
Output efficiency: 80%
-
Switching overshoot: up to 10%
-
Output voltage rise time: up to 100MS
-
Output overvoltage: 4.8-5.2v, recovery: lock, restart after recovery
-
Overpower protection: yes, recovery: lock, restart after recovery
-
Short circuit protection: yes, it will resume automatically after the problem is solved
-
Temperature protection: yes, recovery: lock, restart after recovery
-
Overcurrent protection: yes, restore: lock, restart after recovery
