- Operating Frequency: 2400MHz ~ 2524MHz
- Voltage: 3-3.6V
- Max output power: +20 dBm
- Working current in transmit mode: 115mA
- Working current in receiver mode: 45mA
- Current in mode: 4.2uA
- Operating temperature: -45 degrees to +85 degrees
- Storage temperature: -45 degrees to +125 degrees
- Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
- PA growth: 20dB
- LNA growth: 10dB
- LNA noise figure: 2.6dB
- Antenna growth: 2dBI
- 2M rate: 520m
- It uses 2.4G global open ISM band, with license free.
- Transmit power is greater than +20 dBm.
- Support six-channel data reception.
- 2Mbit/s speed makes high-quality VoIP possible
- Low operating voltage: 2.7 to 3.6V
- Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping
- Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal
- SPI interface facilitates the communication with MCU I/O port.
- Facilitate the development for customers, without development RF part
- Software programming is fully compatible with NRF24L01 modules
- Size: 41mm * 15mm (Approx.)
Applications:
- Keyless entry
- Wireless data communication
- Alarm and security systems
- Home automation
- Surveillance
- Telemetry
- Intelligent sports equipment
- Industrial sensors
Package Includes:

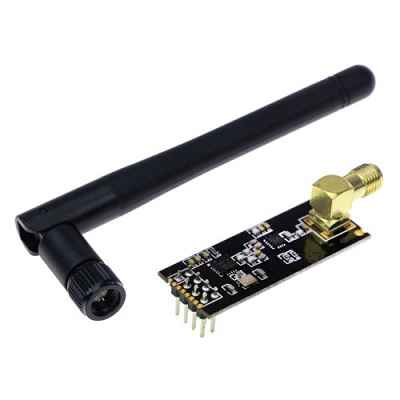

- 1 x NRF24L01+PA+LNA Wireless Module
- 1 x Antenna
[N.B: Products specs may change. Depends on the manufacturer.]
1100 m distance NRF24L01 + PA + LNA wireless module, transmitting antennas NRF24L01P + PA + LNA is ultra-long-distance data transmission specially developed high-power and high sensitivity wireless module. NRF24L01 + PA + LNA wireless module operates in Free license 2.4G ISM band, point to point applications, can also be composed of star network, NRF24L01P + PA + core LNA wireless module for the Norwegian NORDIC company's latest high-performance wireless data transmission chip NRF24L01 +, with the Division professional design, increased power PA and LNA chip, RF switch with pass filter composed of a professional full-duplex RF power amplifier, such that the effective communication distance has been greatly expanded. In the RF section, the Division has done a lot of debugging optimized match, making the highest emission efficiency, harmonic minimum, NRF24L01P + PA + LNA wireless module for RF interference external devices meet the minimum, while not susceptible to interference from other devices dramatically raise high stability work. NRF24L01P + PA + LNA wireless module is highly integrated, the size of only 41mm * 15mm, easily embedded in any space-constrained products, customers simply add an MCU via SPI port control NRF24L01P + PA + LNA wireless module can be completed over long-range wireless data transmission system design, without the need for the development of complete RF section.
