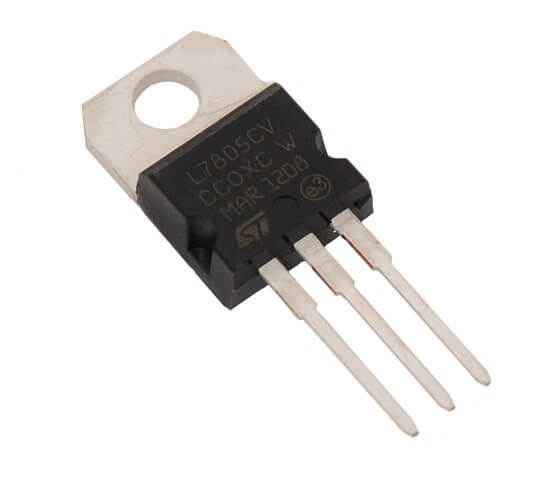

LM7805 Voltage Regulator (5V)

3-Terminal 1A Positive Voltage Regulator
Availability :    129
Quantity :

LM7805 Voltage Regulator (5V) Specification

  • Product Category: Linear Voltage Regulators
  • Mounting Style: Through Hole
  • Package / Case: TO-220
  • Number of Outputs: 1 Output
  • Polarity: Positive
  • Typical Output Voltage: 5V
  • Typical Short Circuit Current: 230mA
  • Peak Current: 2.2A
  • Thermal overload protection
  • Short circuit protection
The LM7805/L7805 (L78 series) of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK, and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
