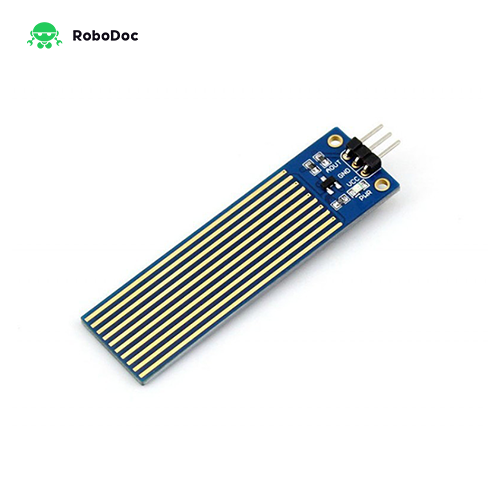

Liquid Level Sensor

Liquid Level Sensor
Availability :    5
৳453.7
Quantity :

Liquid Level Sensor  Specification


  • Output voltage boosts along with the immersion depth of the module
  • Detection depth: 48mm
  • Power: 2.0V ~ 5.0V
  • Dimension: 19.0mm * 63.0mm
  • Mounting holes size: 2.0mm


Applications

  • Water level alarm



How to Use

In the case of working with a MCU:

  • VCC ? 2.0V ~ 5.0V
  • GND ? power supply ground
  • AOUT ? MCU.IO (analog output)
Detection depth: 48mmPower: 2.0V ~ 5.0VDimension: 19.0mm * 63.0mmMounting holes size: 2.0mm
