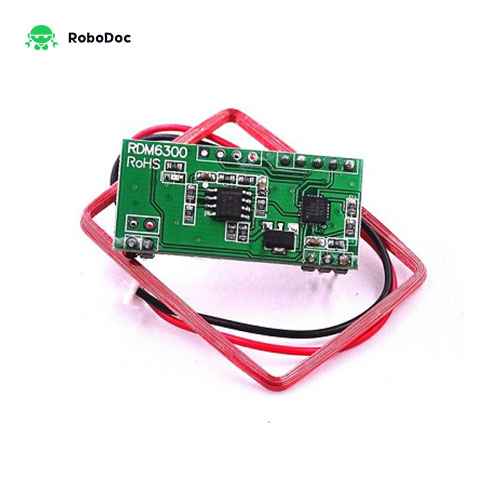

125KHz RFID Reader Module

RDM6300 125KHz RFID Reader Module UART
Availability :    3
Quantity :

125KHz RFID Reader Module Specification

Support external antenna
Less than 100ms decoding time
Uart interface
Support EM4100 compatible read-only or read/write tags
Small outline design
Frequency: 125KHz
Baud rate: 9600
Interface: TTL level RS232 format
Receive distance: Approx. 20~50 mm/ 0.79~1.97 inch (Maximum effective distance up to Approx. 150mm)
Support EM4100 compatible read-only or read/write tags
Working voltage: DC 5V(±5%)
Working current: less than 50mA
Working temperature: -100C to +700C
Storage temperature: -200C to +800C
PCB size: Approx. 38.5×19×9 mm/ 1.52×0.75×0.35 inch
Wiring size: Approx. 46×32×3 mm/ 1.81×1.26×0.12 inch

Package Includes:
1 Piece of Module
1 Piece of Coil
RDM630 125KHz card mini-module is designed for reading code from 125KHz card compatible read-only tags and read/write a card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
RDM630 Series non-contact RFID module, use the advanced RF receiving circuit and embedded MCU design, combing with high efficient decoding algorithm, to finish the data receive of EM4100 and all the compatible cards.
This is a very popular RFID card read module for arduino users, it can read 125K EM4100 series RFID card. This module is easy to use, serial port connect to arduino MCU after power up, when RFID car enter into card reading range, this module will send the card number to arduino by UART.
You can further connect relay arduino shield to your arduino in order to enable the simple door keeper controlling system.
