TIP41C NPN Power Transistor
Availability :    Out Of Stock

Enter mobile number to get notification when available

Quantity :

TIP41C Specification

Collector-Emitter Volt (Vceo): 100V
Collector-Base Volt (Vcbo): 100V
Collector Current (Ic): 6.0A
hfe: 15-75 @ 3000mA
Power Dissipation (Ptot): 65W
Current-Gain-Bandwidth (ftotal): 3MHz
Type: NPN

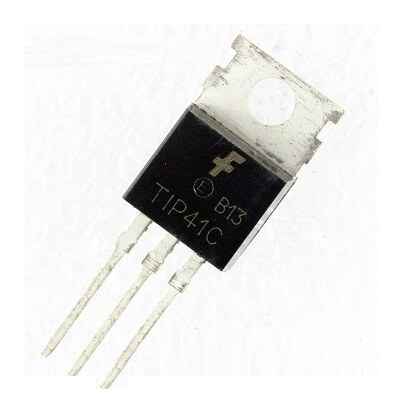

The TIP41C is a base island technology NPN power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications. The complementary PNP type is TIP42C.
General purpose circuits
Audio amplifier
Power linear and switching
