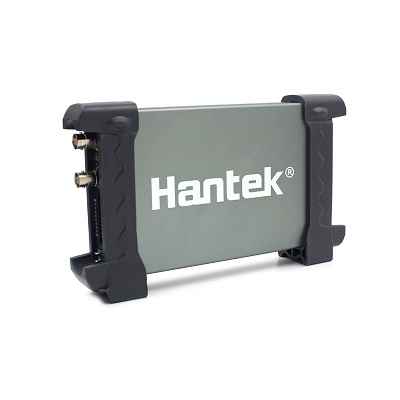

Hantek 6022BL Digital Portable Oscilloscope

Hantek 6022BL USB-based 2-Channel Oscilloscop with 16-CHs Logic Analyzer
Availability :    Out Of Stock

Enter mobile number to get notification when available

৳6990.9 ৳7190.9
Quantity :

Hantek 6022BL Digital Portable Oscilloscope Specification


Bandwidth: 20MHzChannel: 2 (Digital)+16 (Logic)Sample Rate: 48MSa/sMemory Depth: 1MRise Time: 17.5nsTime Base Precision: ±50ppmTime Base Range: 4ns/div-1h/div (Step by1-2-4)Input Impendence: 1MOhm 25pFInput Sensitivity: 20mV/div ~ 5V/div Vertical Resolution: 8BitVertical Position Range: 20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe; 2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probeDC Accuracy: ±3%Bandwidth Limited: 20MHzTrigger Type: Edge, AlternativeTrigger Source: CH1, CH2Math: +,-,x,÷,FFT, InvertCursor Measurement: Cross, Trace, Horizontal, VerticalAuto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty CycleLogic Analyzer Features:Channel: 16Max. Impendance: 1MOhm(C=7.5pF)Max. Voltage: 0V~5.5V Max. Sample: 48MBandwidth: 10MHzCompatible Input: TTL, LVTTL, CMOSMemory Depth: 1M/CHGeneral FeaturesPower: USB PortStandard Probe: 2 x PP80Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.USB2.0 interface, no external power source required, easy to use.Be suitable for notebook computer, product line maintenance, be used easily on business.High performance, 48MS/s real-time sampling, 20MHz bandwidth.16Channels Logic Analyzer, 10MHz Bandwidth;Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.23 measurement functions, PASS/FAIL Check, be suitable for technical application.Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.FFTOne computer can connect many DSO, extend channel easily.Labview\VB\VC Second Design instance.Dimensions (mm): 205(L) x120(W) x35(H), be carried easily.Weight: 0.3KGPackage Includes:1 x Oscilloscope Host1 x USB Cable 1 x CD2 x Probes2 x Bag of Logic Analyzer Probes2 x Cables1 x User Manual (English)
The Hantek 6022BL is a USB-based, 2-channel oscilloscope with 20MHz Bandwidth; 48MSa/s Sample Rate; 16 Channels Logic Analyzer; Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface and has good heat resistance and strong wearability. Standard USBXI (TM) interface, easily inserts into USBXI (TM) housing to make up a combination instrument.The device can either be used as oscilloscope or as logic analyzer, but not both at the same time. I.e., it is not a mixed-signal-oscilloscope (MSO).
Official WebsiteWikiInfoReviewDownloads:1HT6022BL SoftwareClick to download2HT6022BL DriverClick to download3HT6022BL SDKClick to download4HT6022BL ManualClick to download
