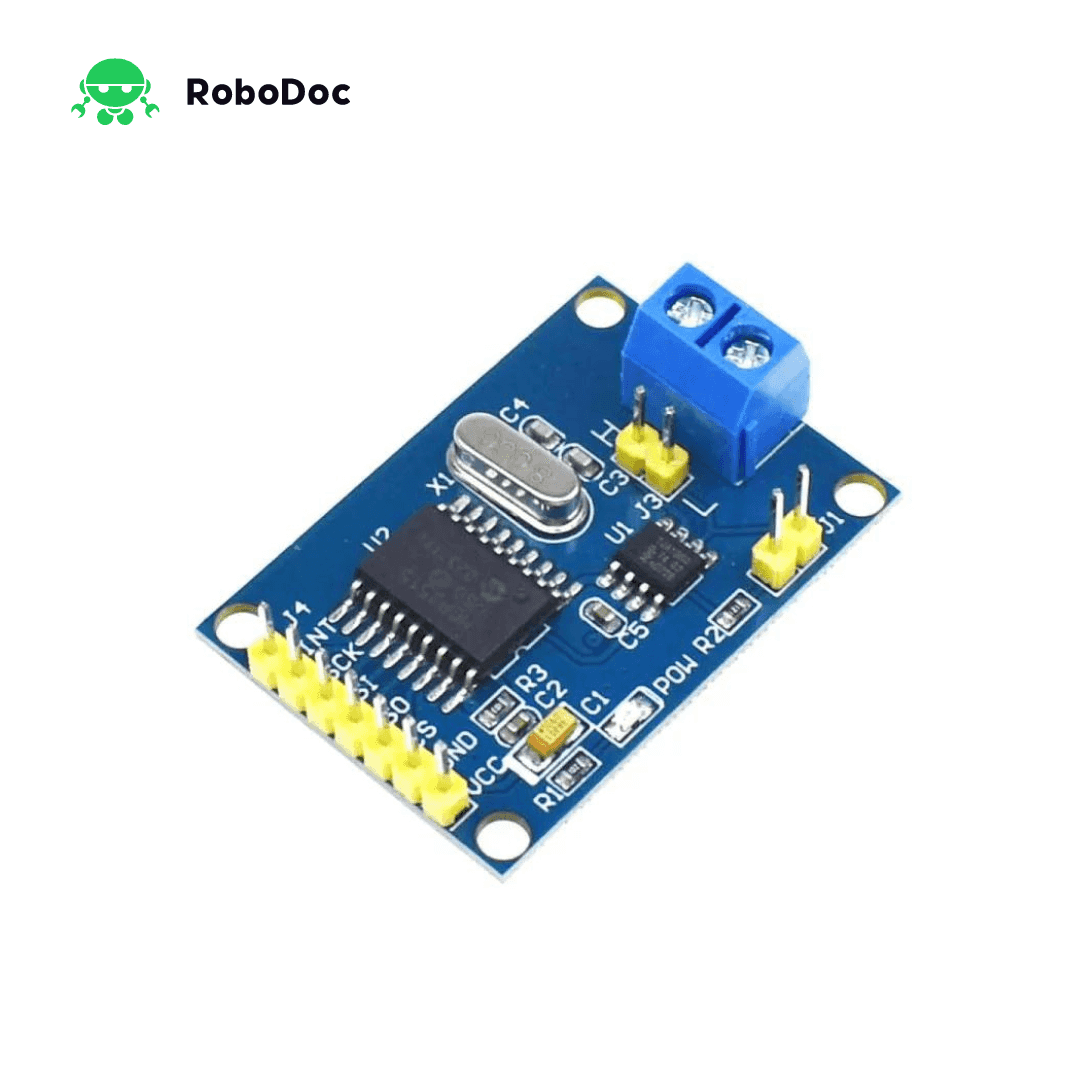

MCP2515 CAN Bus Module This CAN Bus Module based on the CAN bus controller MCP2515 and CAN transceiver TJA1050. With this module, you will easily control any CAN Bus device by SPI interface with your MCU, such as Arduino UNO and so on.
Specifications:
-
Supports CAN V2.0B Specification that deal with the 1 Mbytes/sec
-
0 to 8 byte data field
-
Standard Frame, and the frame and remote control
-
5 V DC power supply module, SPI interface protocol control
-
120 OHM RESISTANCE. Matches Impedance to ensure, storage capacity; Long-distance data transmission to prevent signal radiation
-
Central 6, module size: 4.4 cm x 2.8 cm hole spacing 23 mm x 35 mm
-
Working current: 200mA-500mA (Power Supply Voltage Type. 5 Ma, 1 Micr OAMP idle current. Except the indicator
-
The operating temperature: Industrial grade to 85 °C – 40 °C
-
Can controller chip: Microchip MCP2515 High Speed can transceiver chip: NXP TJA1050
Package:
1x MCP2515 CAN Bus Module TJA1050 Receiver SPI Module
