Specifications
-
Type: Adjustable Linear Regulator
-
Output current: up to 1.5 A (minimum), up to 2.2 A (typical)
-
Adjustable output voltage range: 1.2V ~ 37V
-
Maximum input-output voltage differential: 40 V(max)
-
Internal thermal overload protection
-
Internal short-circuit current limiting
-
Characteristic frequency: 100MHz.
-
Module size: 35.6 x 16.8 mm.
-
Input method: Vin input is level, GND input is negative
-
Output: Vout output positive stage, GND output negative
Package:

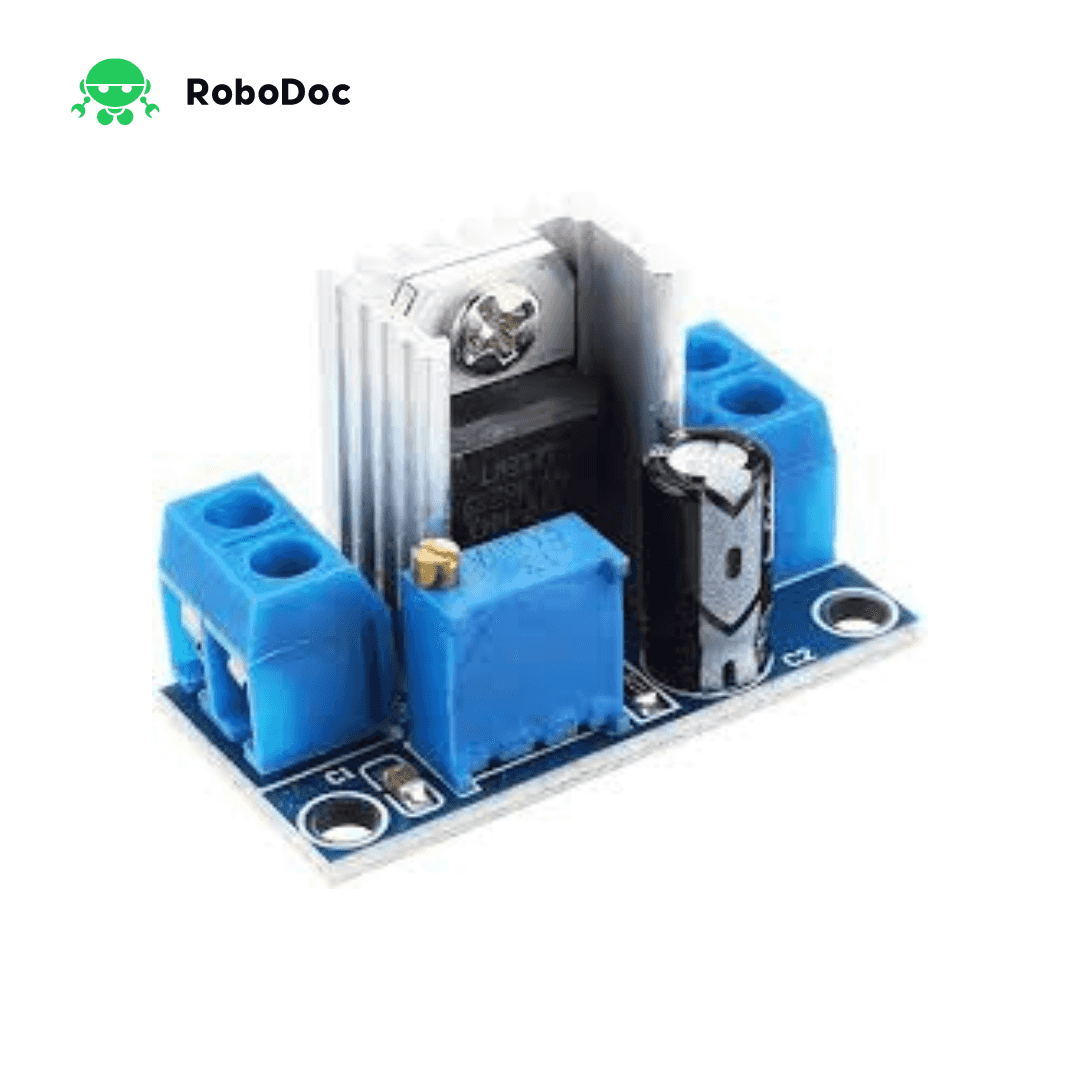

1x LM317 Linear Voltage Regulator Module
