Product ID: rd_10045
৳44.3

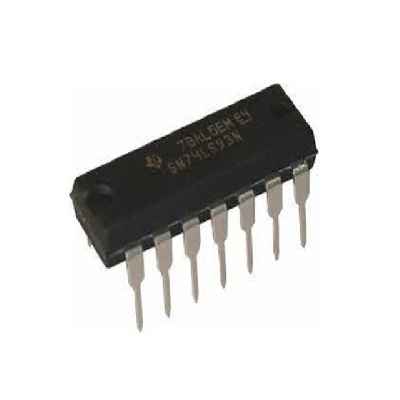

SN74LS93N 4-Bit Binary Counters
Quantity
1
Available
The 7493 IC is a 4-bit binary ripple counter that is capable of operating as a multi-modulus counter. The counter IC 7493 consists of two separate stages of a single JK-flipflop (1:2) and three JK-flipflops (1:8, asynchronous). The reset inputs (R01 and R02) are shared by all flipflops.
For the full 1:16 counter, the output of the first stage QA is connected to the clock input B of the 1:8 counter stage. Larger (asynchronous) binary counters can be built by a cascade of multiple 7493 chips.
The 7493 IC is a 4-bit binary ripple counter that is capable of operating as a multi-modulus counter. The counter IC 7493 consists of two separate stages of a single JK-flipflop (1:2) and three JK-flipflops (1:8, asynchronous). The reset inputs (R01 and R02) are shared by all flipflops.
For the full 1:16 counter, the output of the first stage QA is connected to the clock input B of the 1:8 counter stage. Larger (asynchronous) binary counters can be built by a cascade of multiple 7493 chips.
