Specification:
DS5160SSG continues to keep quality such as: CNC aluminum middle Shell for better heat dissipation, two ball bearings on the output shaft for reduced friction.
Light weight, high-speed big torque, water-resistant, sensitive, responsive, low noise and so on.
It’s Stainless Steel Gear which offers faster speed and accuracy and longer service life. It also has plenty of power. It is super strong and stable and will help you to control your model better.
Feature:
-
High-precision metal gear.
-
Durable SS Metal Gear
-
Double Ball Bearing
-
Programmable Digital Amplifier with Mosfet Drive
-
Bottom Side Axial Mount Hole
-
Orientation Angle: maximum 270deg
-
Mechanical Angle:360deg (Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)
Specifications:
-
Operating Voltage:6V-8.4V
-
Connector wire length:17.7in (450mm)
-
Gear ratio:279
-
Pulse width range: 500～2500μsec
-
Dead band width Microseconds
-
Waterproof performance:IP67
Speed:
-
0.17sec/60 degree @6V
-
0.15sec/60 degree @7.4V
-
0.13sec/60 degree @8.4V
Torque:
-
58kg.cm.@6V
Package:

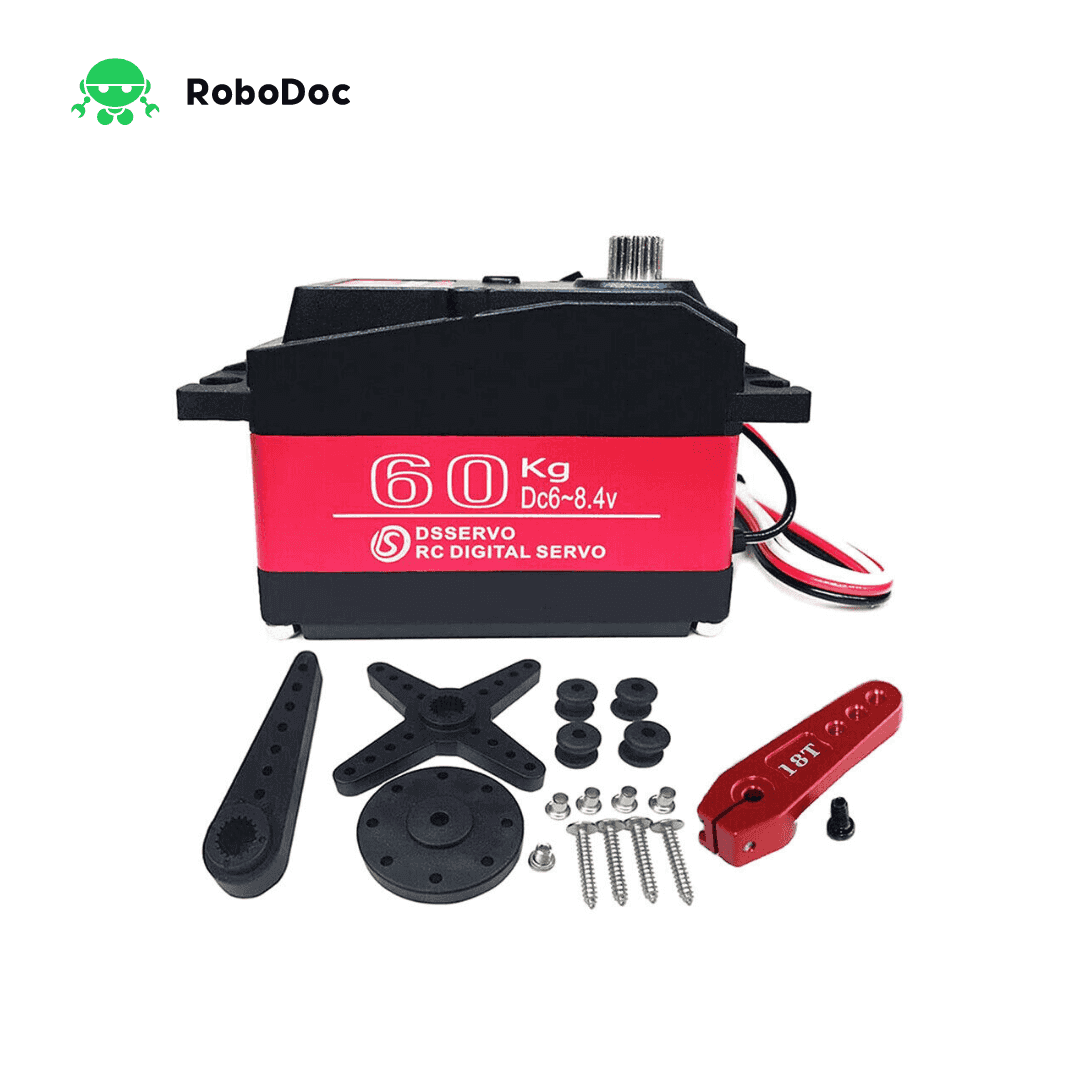

-1 pcs Digital Metal Robotic Servo
-A set of accessories: Long Holder Aluminum, Short Holder Aluminum, Circle Holder-18T, Circle Holder and screws (As shown in the picture)
