The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro stepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, over current and over temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
![DRV8825 Purple Stepper Motor Driver](/_next/image?url=https%3A%2F%2Fcdn.robodocbd.com%2Fproduction%2F72da7fd6d1302c0a159f6436d01e9eb0%2F12f3d80a754d35e1b0b1ff83c6578423.png&w=3840&q=40)
![DRV8825 Purple Stepper Motor Driver](/_next/image?url=https%3A%2F%2Fcdn.robodocbd.com%2Fproduction%2F72da7fd6d1302c0a159f6436d01e9eb0%2F12f3d80a754d35e1b0b1ff83c6578423.png&w=3840&q=40)
Product ID: mt_10035

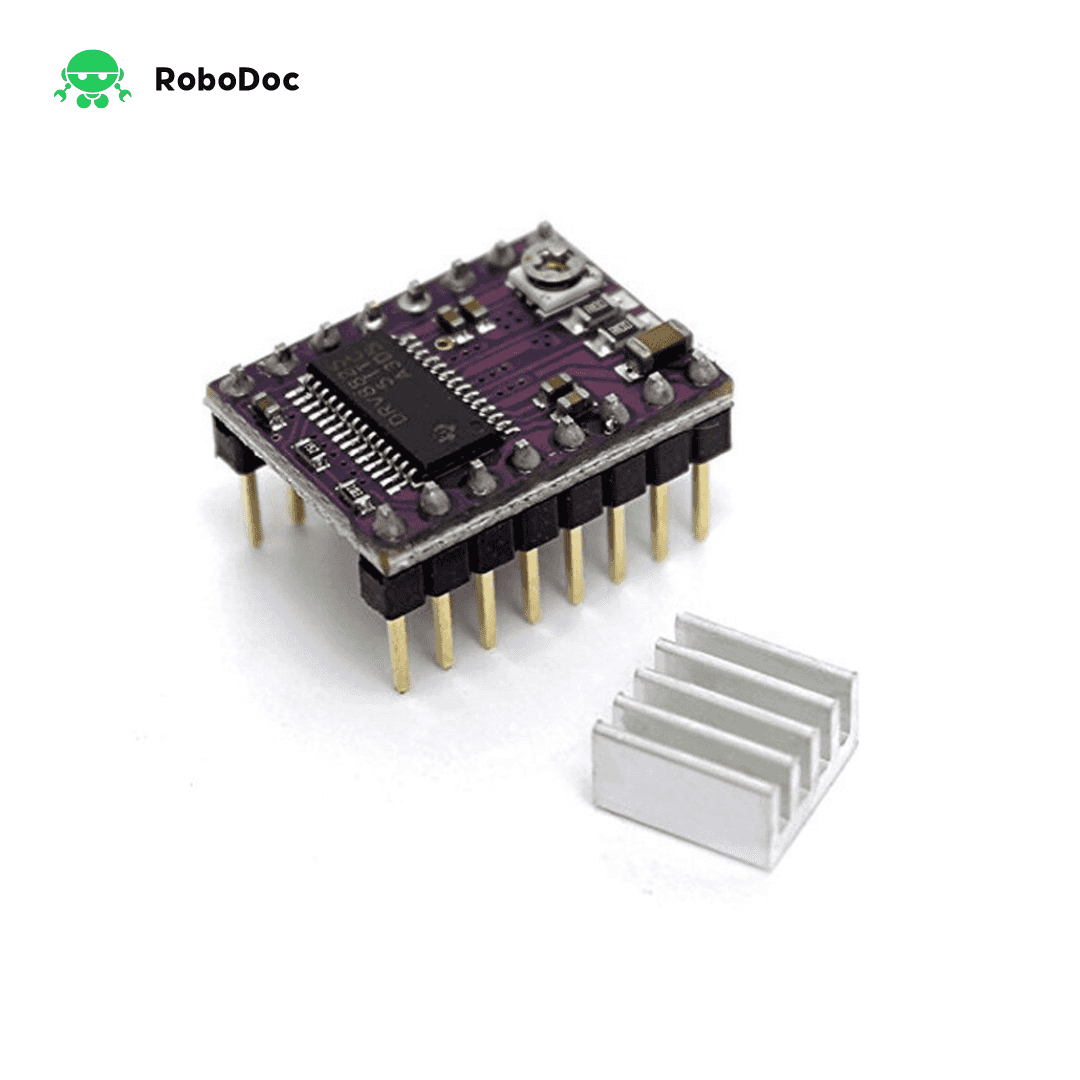

DRV8825 Purple Stepper Motor Driver
৳239.7
3D Printer Parts StepStick DRV8825 Stepper Motor Driver
Quantity
1
Availability: 1
About this Item
The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 micro stepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, over current and over temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
