PIC18F452

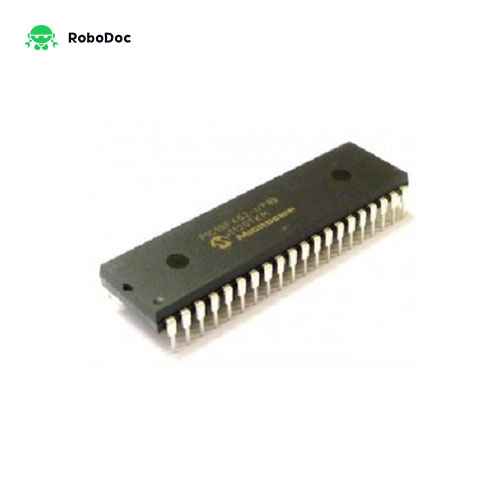

Microchip PIC18F452-I/P Microcontroller
Availability :    2
৳288.1
Quantity :


PIC18F452-I/P - PIC18F452 Flash 40-pin 32kB 40MHz Microcontroller
  • Program Memory Type: Flash
  • Program Memory (KB): 32
  • CPU Speed (MIPS): 10
  • RAM Bytes: 1,536
  • Data EEPROM (bytes): 256
  • Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
  • Capture/Compare/PWM Peripherals: 2 CCP
  • Timers: 1 x 8-bit, 3 x 16-bit
  • ADC: 8 ch, 10-bit
  • Temperature Range (C): -40 to 125
  • Operating Voltage Range (V): 2 to 5.5
  • Pin Count: 40
This powerful 10 MIPS (100 nanosecond instruction execution) yet easy-to-program (only 77 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX, PIC16CXX and PIC17CXX devices and thus providing a seamless migration path of software code to higher levels of hardware integration. The PIC18F452 features a 'C' compiler friendly development environment, 256 bytes of EEPROM, Self-programming, an ICD, 2 capture/compare/PWM functions, 8 channels of 10-bit Analog-to-Digital (A/D) converter, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, instrumentation and monitoring, data acquisition, power conditioning, environmental monitoring, telecom and consumer audio/video applications.
