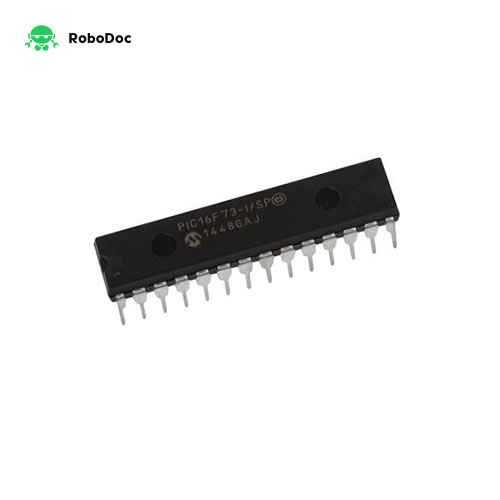

Microchip PIC16F73-I/SP Microcontroller
Availability :    2
Quantity :

PIC16F73 Specification

Microchip PIC16F73-I/SP, 8bit PIC Microcontroller, 20MHz, 4K x 14 words Flash, 28-Pin SPDIP
  • 20 MHz Max. CPU Speed
  • 35 Instructions
  • 8 Level Hardware Stack
  • 22 I/O Pins – PIC16F73/76 Models
  • Power-On Reset (POR)
  • Power-Up Timer (PWRT)
  • Oscillator Start-up Timer (OST)
  • Brown-Out Reset (BOR)
  • Watchdog Timer (WDT)
  • In-Circuit Serial Programming (ICSP)
  • In-Circuit Debug (ICD)
  • Flash:7 Kbytes
  • Operating Voltage Range (V): 2 to 5.5
  • RAM:192 Bytes
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F73/74/76/77 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory and up to 368 bytes RAM.
