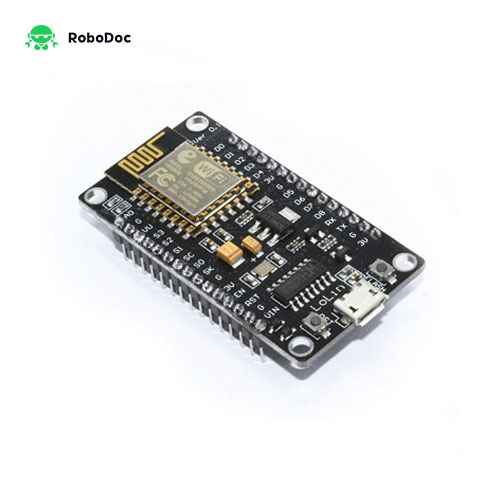

NodeMcu Lua V3 ESP8266 WiFi with CH340G

NodeMcu Lua V3 WiFi Module Based CH340G ESP8266
Availability :    16
Quantity :

NodeMcu Lua V3 ESP8266 WiFi with CH340G Specification

  • The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-Wire and ADC all in one board.
  • USB-TTL included, plugNplay
  • 10 GPIO, every GPIO can be PWM, I2C, 1-wire
  • PCB antenna
  • Open-source
  • Interactive
  • Programmable
  • Low cost
  • Simple & Smart
  • Wi-Fi enabled
  • Arduino-like hardware IO
  • Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
  • Code like Arduino, but interactively in Lua script.
  • Nodejs style network API
  • Event-driven API for network applications, which facilitates developers writing code running on a 5mm*5mm sized MCU in Nodejs style.
  • Greatly speed up your IOT application developing process.
  • Lowest cost Wi-Fi MCU ESP8266 integrated and easy to prototyping development kit.
  • Power in for DC 4~9V, to pin VIN
  • Size: 4.8×2.5cm/1.89×0.98inch

This is the famous NodeMCU which is based on ESP8266 WiFi SoC. This is version 3 and it is based on ESP-12E (An ESP8266 based WiFi module). NodeMCU is also an open-source firmware and development kit that helps you to prototype your IOT product within a few LUA script lines, and of course, you can always program it with Arduino IDE.
