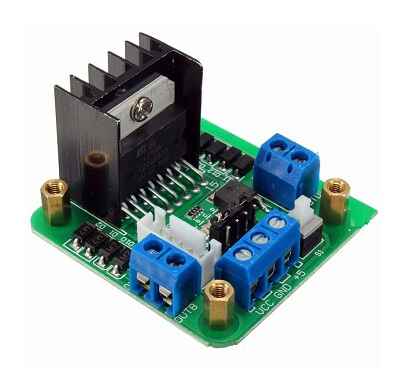

L298N Stepper Motor Driver (Green)

L298N Dual Motor Controller Module
Availability :    3
৳319.2 ৳369.2
Quantity :

L298N Stepper Motor Driver (Green) Specification

Motor Power Supply Vs: +5 V to +35 V
Max average current 2A
peak current Io: 3A
Logic Level Power Vss: +5 V ~ +7 V (Onboard 5V Regulator can be used if Motor Power is > 7.0V)
Logic level power: 0 ~ 36mA
Logic signal input range:[ Low:-0.3V ? Vin ? 1.5V] [ High: 2.3V ? Vin ? Vss]
Maximum power dissipation: 20W (when the temperature T = 75 ?)
Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
Driver Board Weight: 33g
LED direction indicators, Logic power source switch. (DOWN for onboard Regulator)
Dimensions: 2.17 in x 1.97 in x 1.38 in (5.5 cm x 5.0 cm x 3.5 cm)
Weight: 1.13 oz (32 g)
This module is based on L298N, high voltage, high current dual full-bridge driver which can be used to drive a DC motor and stepper motor, relay coil inductive load; using standard logic level signal control; having two enable control end to allow or prohibit the work has a logic device power supply input terminal, in the case regardless of the input signal affect the internal logic circuit portion to operate at a low voltage; can be an external sense resistor, the amount of change in feedback to the control circuit.
