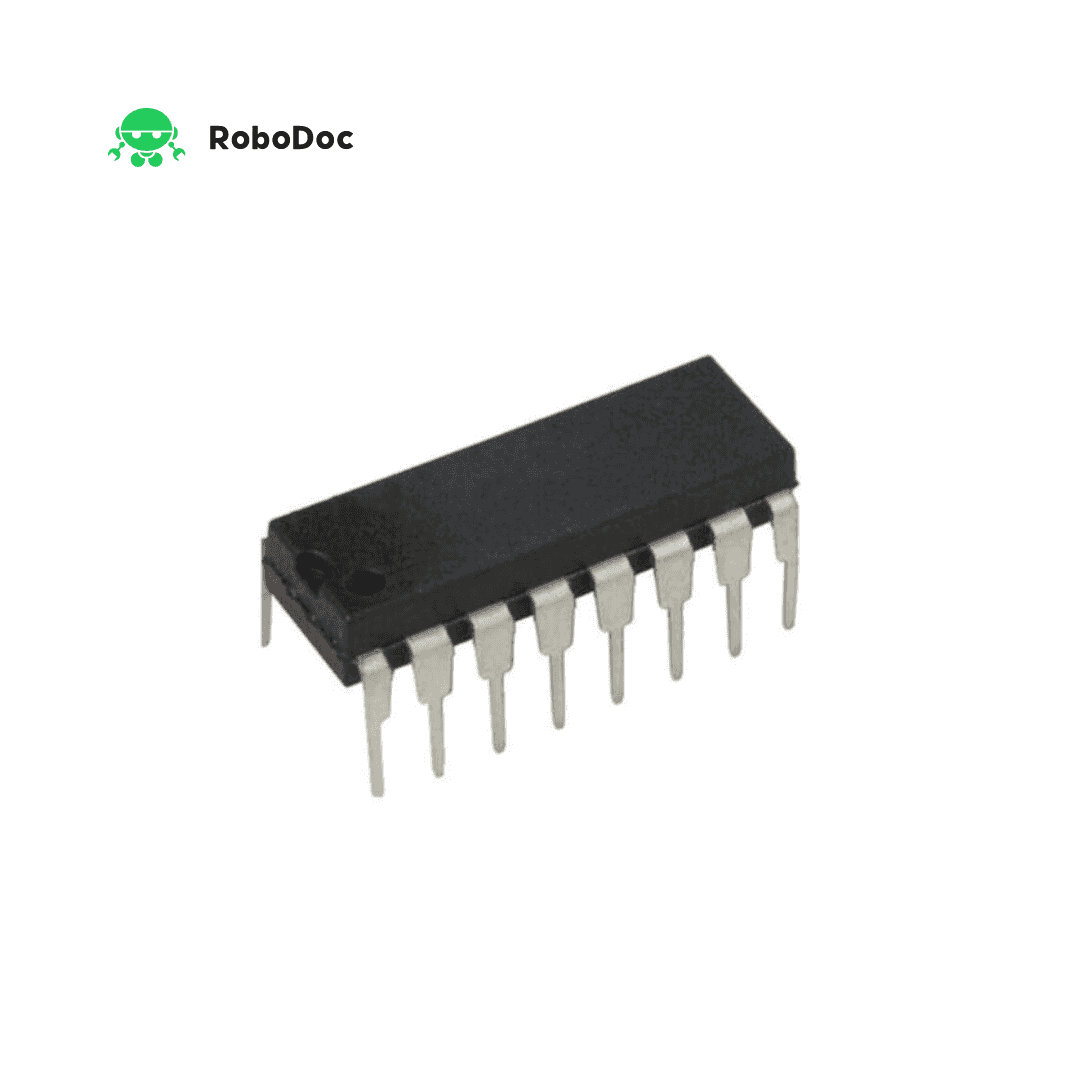

IC 74150

16-Line To 1-Line Data Selector/Multiplexer
Availability :    15
Quantity :

IC 74150 Specification

Absolute Maximum Ratings: Supply Voltage: 7V Input Voltage: 5.5V Operating Free Air Temperature: 0oC to +70oC Storage Temperature Range: -65oC to +150oC
These data selectors/multiplexers contain full on-chip decoding to select the desired data source. The DM74150 selects one-of-sixteen data sources. The DM74150 has a strobe input which must be at a LOW logic level to enable these devices. A HIGH level at the strobe forces the W output HIGH and the Y output (as applicable) LOW. The DM74150 features an inverted (W) output only.
