- Typical -80dBm sensitivity.
- Up to +4dBm RF transmits power.
- Low Power 1.8V Operation, 3.3 to 5 V I/O.
- PIO control.
- UART interface with programmable baud rate.
- With integrated antenna.
- With edge connector.
- Slave default Baud rate: 9600, Data bits:8, Stop bit:1, Parity: No parity
- Auto-connect to the last device on power as default.
- Permit pairing device to connect as default.
- Auto-pairing PINCODE: 1234 as default.
- Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection.
Applications:
- It is used in Electronic projects.
- Bluetooth based Robotic projects using 8051/AVR/PIC/ARM/NXP/Infineon microcontroller.
- It is used in all types of wireless communication purposes.

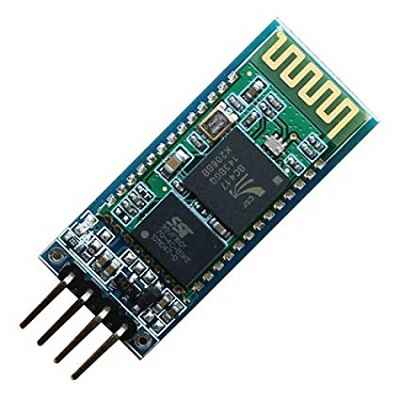

The HC06 is a Serial port Bluetooth module which having fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Blue core 04-External single chip Bluetooth system with CMOS technology and with AFH (Adaptive Frequency Hopping Feature).
