AD8232 Heart Rate Monitor

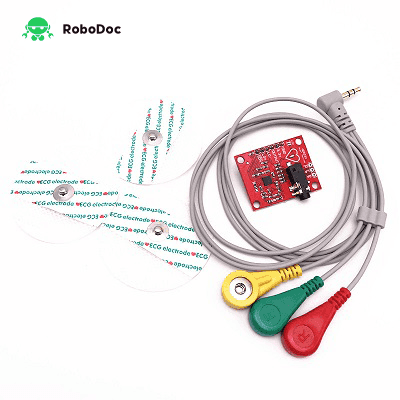

Heart Rate & ECG Sensor Module (with Cable and Pads)
Availability :    1
৳799.5 ৳908.5
Quantity :

AD8232 Heart Rate Monitor  Specification

  • Operating Voltage: 3.3V
  • Single-supply operation: 2.0V to 3.5V
  • Accepts up to ±300 mV of half-cell potential
  • Analog Output
  • Leads-Off Detection
  • Shutdown Pin
  • LED Indicator
  • Fully integrated single-lead ECG front end
  • Low Supply Current: 170 uA (typ)
  • CMRR: 80dB (DC to 60Hz)
  • Two or three electrode arrangement
  • High signal gain (G = 100), with OC blocking ability
  • Adjustable high-pass filter 2-pole
  • Accept the half-cell potential of 300mV high Dashi
  • Quick Recovery feature reduces setup time filter
  • No use constraints of the operational amplifier
  • 3 pole adjustable low-pass filter with adjustable gain
  • Lead-off detection: select AC or DC
  • Integrated right leg drive (RLD) amplifiers
  • Integrated reference buffers generate a virtual ground
  • Rail-to-rail output
  • Internal RFI filter
  • 8kVHBMESD Ratings
  • Shutdown pin
  • 3.5mm Jack for Biomedical Pad Connection or Use 3 pin header Compatible with Arduino, Raspberry Pi, etc.

The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart.

This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily.

The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement applications. It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors too. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board. It also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors.

Additionally, there is an LED indicator light that will pulsate to the rhythm of a heartbeat. Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section below.

- Fitness and Sports Heart Rate Monitoring
- Portable ECG
- Remote Health Monitor
- Game Peripheral Equipment
- Bioelectricity Signal Collection
