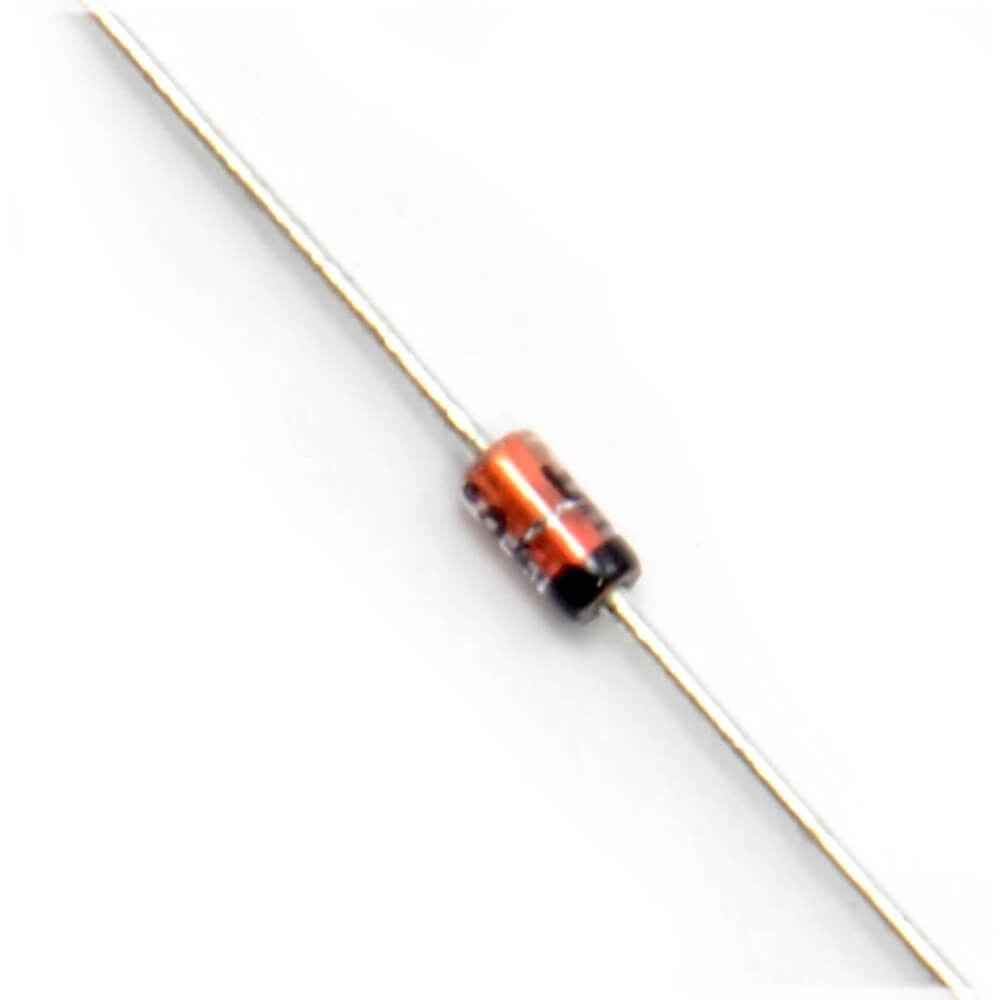

1N4148 (Silicon Diode)

High Speed Switching Diode
Availability :    57
Quantity :
Repetitive peak reverse voltage VRRM: 100 V
Reverse voltage VR: 75 V
Peak forward surge current tp: 1 U+00B5s IFSM 2 A
Repetitive peak forward current IFRM: 500 mA
Forward continuous current IF: 300 mA
The 1N4148 is a standard silicon switching signal diode. This is a high-speed switching diode fabricated in planar technology and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.
